TA-50 Military Storage Lockers

WireCrafters TA-50 Military Storage Locker
Standard Sizes
Standard size of one locker is 24" deep x 42"" wide x 78" high, however custom sizes are also available.
Heavy-Duty Construction
Quick to install and rock solid once in place, our TA-50 Lockers are built to last.
Fully Customizable
Depending on the gear to be stored, different options and configurations are available to customize the storage locker to fit your requirements.
GSA Contract
All storage lockers and secured cages offered from WireCrafters are available under GSA Contract.

Military Gear Storage Lockers

Officers prefer WireCrafters TA-50 Military Storage Lockers because of their modern look, innovative design, heavy duty materials, and quality construction. Quick to install and rock solid once in place, WireCrafters has supplied TA-50 Military Storage Lockers and other types of storage solutions for the demanding requirements of the military and other government agencies for years. Our storage lockers are built to last.

Locker Features & Components

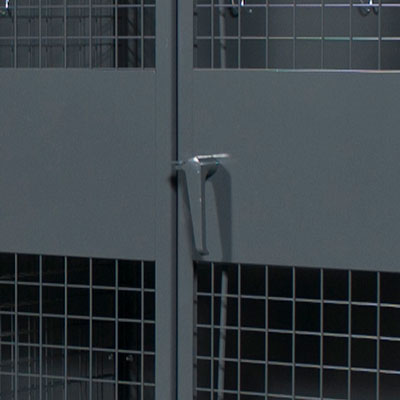

TA-50 MIlitary Storage Lockers can be customized and configured with different options and accessories within the lockers. Typically, these storage lockers come equipped with a double hinged door on the front of the locker featuring a three point lock which will accept a user-supplied padlock. The three point lock is very secure; a rod is engaged at both the top and bottom of the storage locker and a heavy steel padlock lug is positioned in the center of the door. Inside the storage locker there are three coat hooks as well as a single clothing rod, perfect for hanging apparel. In addition, there is a 16 gauge solid steel shelf mounted above the hooks and rod for storing gear and other items.

TA-50 Gear Locker Specifications

The TA-50 Storage Locker's standard size is 24" deep x 42" wide x 78" high, but custom sizes are also available. The wire mesh on the front and sides of the locker is 2" square 10 gauge welded wire or 1 1/2" 13 gauge flattened expanded metal. Other meshes or expanded metals are available.

Different options and configurations are available to customize the storage locker to fit your requirements.

16 gauge sheet metal with 1 1/4" flanges are formed and welded to make the top panel of the locker. The same 16 gauge sheet is formed to make the interior shelf, and the bottom panel of the storage locker is a heavier 14 gauge steel, 4" high. The back panel of the locker is made of 16 gauge sheet metal. The locker's coat rod is 3/4" schedule 40 pipe welded to 1/8" x 1 1/4" mounting brackets. Three coat hooks are mounted to the interior back panel of the locker.

Custom TA-50 Storage Lockers

Depending on the gear to be stored, different options and configurations are available to customize the storage locker to fit your requirements. We can also provide secure hatches within the locker to store valuable gear or personal items. Openings can be made for helmets and scuba gear, or we can add additional shelves for foot gear or other apparel.

Lockers can be shipped fully assembled for quick installation, or knocked down for on-site assembly. If assembled on site, you may choose to use common (shared) wall and ceiling panels to lower the overall cost of your storage locker project.

All storage lockers and secured cages are available under GSA Contract.

Free design and layout assistance is available. Call us at 800-924-9473.

  • Choose from Welded Wire, Woven Wire, Expanded Metal or Sheet Metal.
  • Choose from tubular or angle structural frame.
  • Full line of Sliding and Hinged doors available.
  • Sliding doors have patented tamper resistant latch mechanism.
  • Pad lock lug standard, key locks available.
  • Assembly hardware (where required) is inaccessible from the exterior.
  • Standard 3/8" mounting hardware is the heaviest in the industry.
  • Heavy duty options available.
  • Coat and duffle bag hang bars.
  • Fixed and folding shelves available.
  • Helmet and equipment inspection hatches.
  • Shipped set-up or knocked down.
  • Standard Size

    24" deep x 42" wide x 78" high, custom sizes available.

  • Mesh

    2" square 10ga. (.135 thick) welded wire standard, other meshes including 1 1/2" 13 gauge expanded metal are also available.

  • Sides

    1 1/4" x 1 1/4" x 13 gauge roll form angle with 2" square mesh securely welded to frame.

  • Door(s)

    1 1/4" x 1 1/4" x 13 gauge roll form angle with 2" square mesh securely welded to frame. Doors have full length angle strike, three point cane bolt lock on double door units with padlockable handle.

  • Top

    Formed 16 gauge sheet with 1 1/4" flanges and formed integral door stop.

  • Shelves

    Formed 16 gauge sheet with one piece coat rod bolted to underside of shelf.

  • Bottom

    Formed 16 gauge sheet metal.

  • Back

    16 gauge sheet metal.

  • Clothing Rod

    3/4" schedule 40 pipe welded to 1/8" x 1 1/4" mounting brackets. Finish is hot dip galvanized.

  • Coat Hooks

    Three per unit standard, mounted on back wall under shelf.

  • Hardware

    All interconnecting and assembly hardware is supplied.

  • Finish

    All non-plated parts shall be Powder Coat Gray. Product is finished for interior applications. Materials are subject to nicks and scrapes while in transit. Touch up paint provided. View other available Color Options
WireCrafters logo ×Close
Finishes & Colors

Unless otherwise specified by the customer or by the stock finish description on our website, all WireCrafters products receive one coat of gray (standard) liquid enamel.

Stock Colors

WireCrafters maintains stock of the optional colors shown. All colors are available in traditional liquid enamel or an optional powder coat finish. Touch up paint is provided with all orders (other than custom powder coat colors).


Custom Colors

Custom matched colors require the submission of a one inch square (or larger) paint chip with order, and require an additional charge. (RAL standard color number may be submitted in lieu of paint chip.) Touch up paint is provided with all orders. Custom match colors may extend delivery time. Please contact WireCrafters customer service for additional information.


Optional Finishes
  • Powder Coat
  • Galvanized
  • Plain Steel
  • Brushed (Stainless Steel)
  • Electro Polished (Stainless Steel)

WireCrafters Product Finishes and Color Samples

*Note: The colors displayed on this website show the variety of optional colors kept in stock. Users should not place orders based on the colors as reproduced on their computer screens as these may vary from the actual color. Please request a printed WireCrafters Color Chart before making a color selection.
