Data Center Cage & Server Cages

Data Center Cage & Server Cages

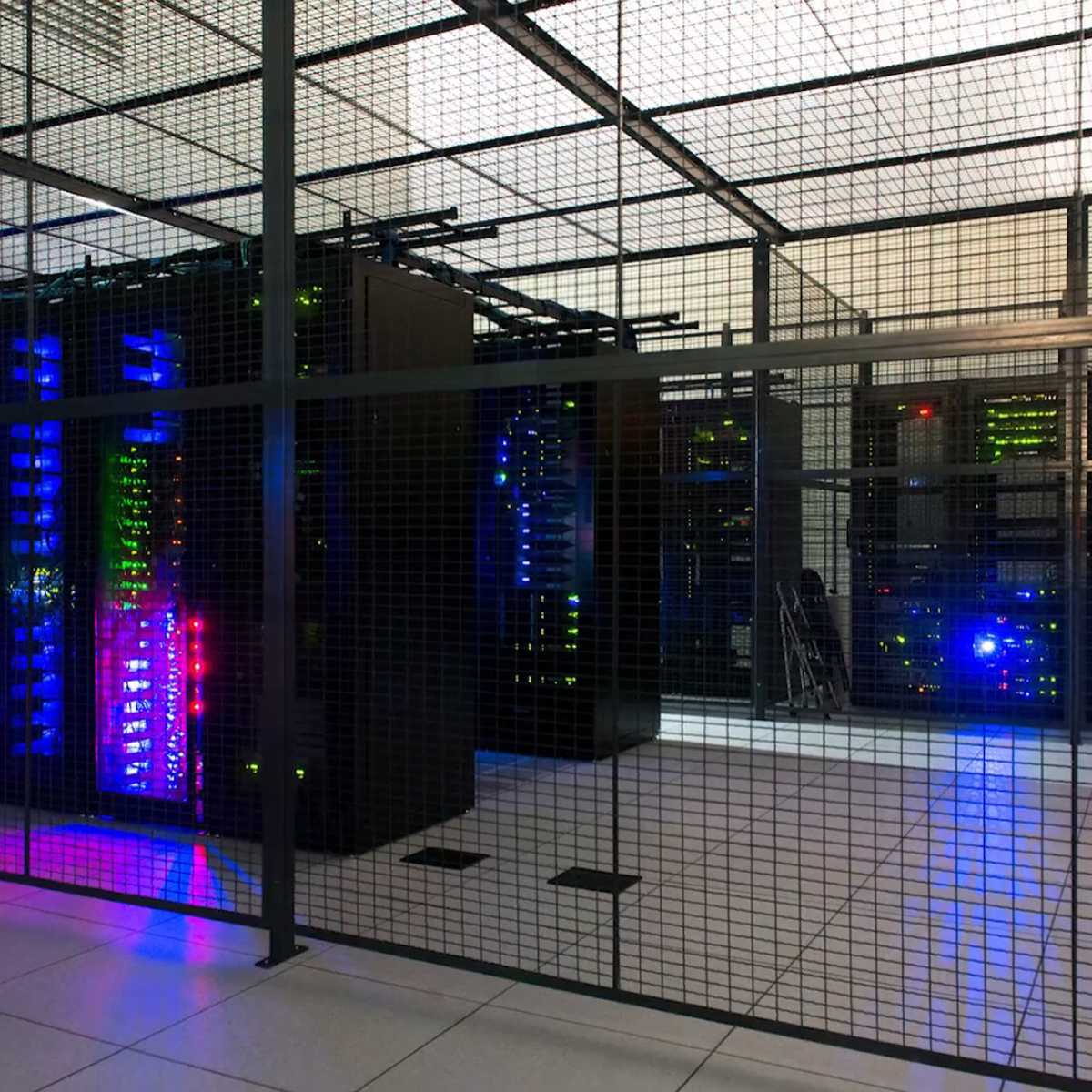

WireCrafters Style 840 Woven Wire partition system can be used to economically separate and secure customer specific server or network equipment. Divide entire hosting facilities with the easily reconfigurable Style 840 Server Enclosure System. Our open but secure design allows free circulation of light, HVAC, and fire suppression systems throughout the secured server storage areas, and a variety of sizes and options are available. Strong, durable, and attractive server cages will impress potential clients by showing your attention to quality and security.

WireCrafters Server Cage partition panels easily bolt together and are shipped already sized. No cutting or grinding is required. All necessary hardware is included with your order.

Standard 3/8″ mounting hardware is the heaviest in the industry. Heavy duty options available.

WireCrafters designs our Server Cage system with all of the hardware on the inside of the enclosure. With hardware only accessible from the inside of the secured area, security is guaranteed.

Let us help with free design and layout assistance is available. Call 800-924-9473.

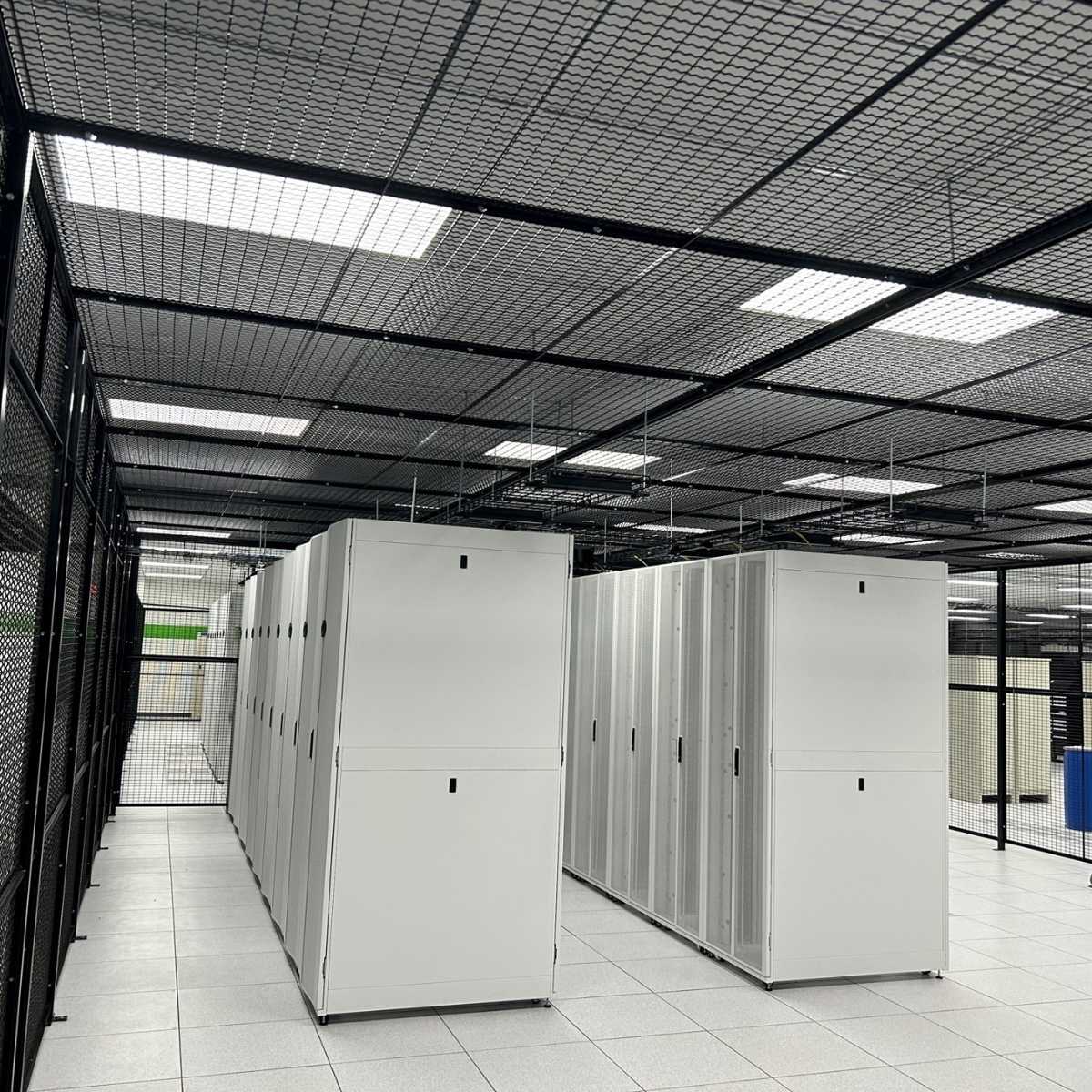

WireCrafters Server Cages allow side by side storage of server racks without wasting space while maintaining individual or multiple-rack security, and secured access. Server cages are an economical, modular option to your network security issues.

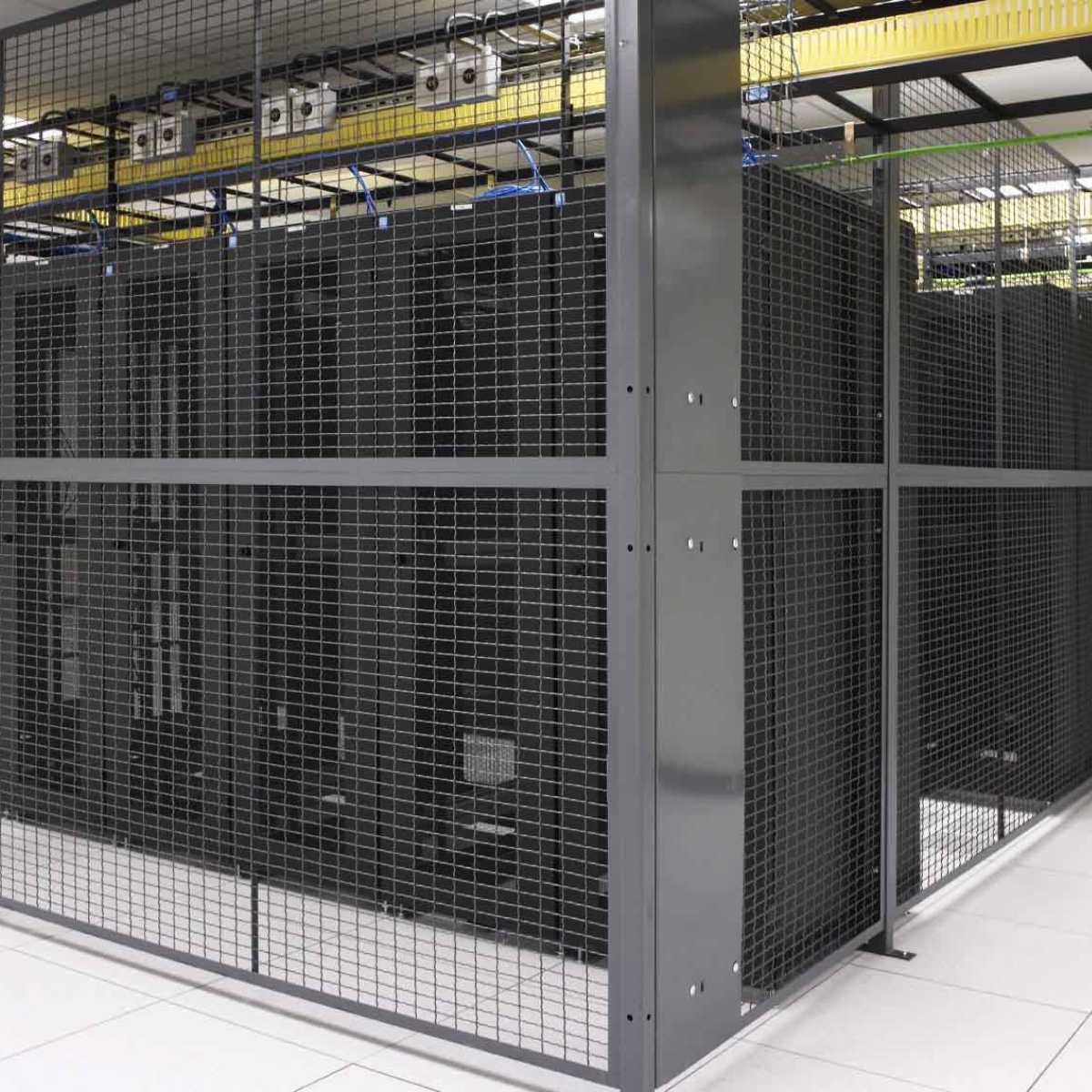

Server Cages are constructed of wire mesh partition panels made from 10 gauge wire, woven into a 2″ x 1″ rectangular mesh design. This wire mesh is then framed in a 1 1/4″ x 1 1/4″ x 1/8″ hot rolled angle frame. Depending on the size of the wire partition panels, we also weld a flat stiffener bar to the wire mesh and angle frame.

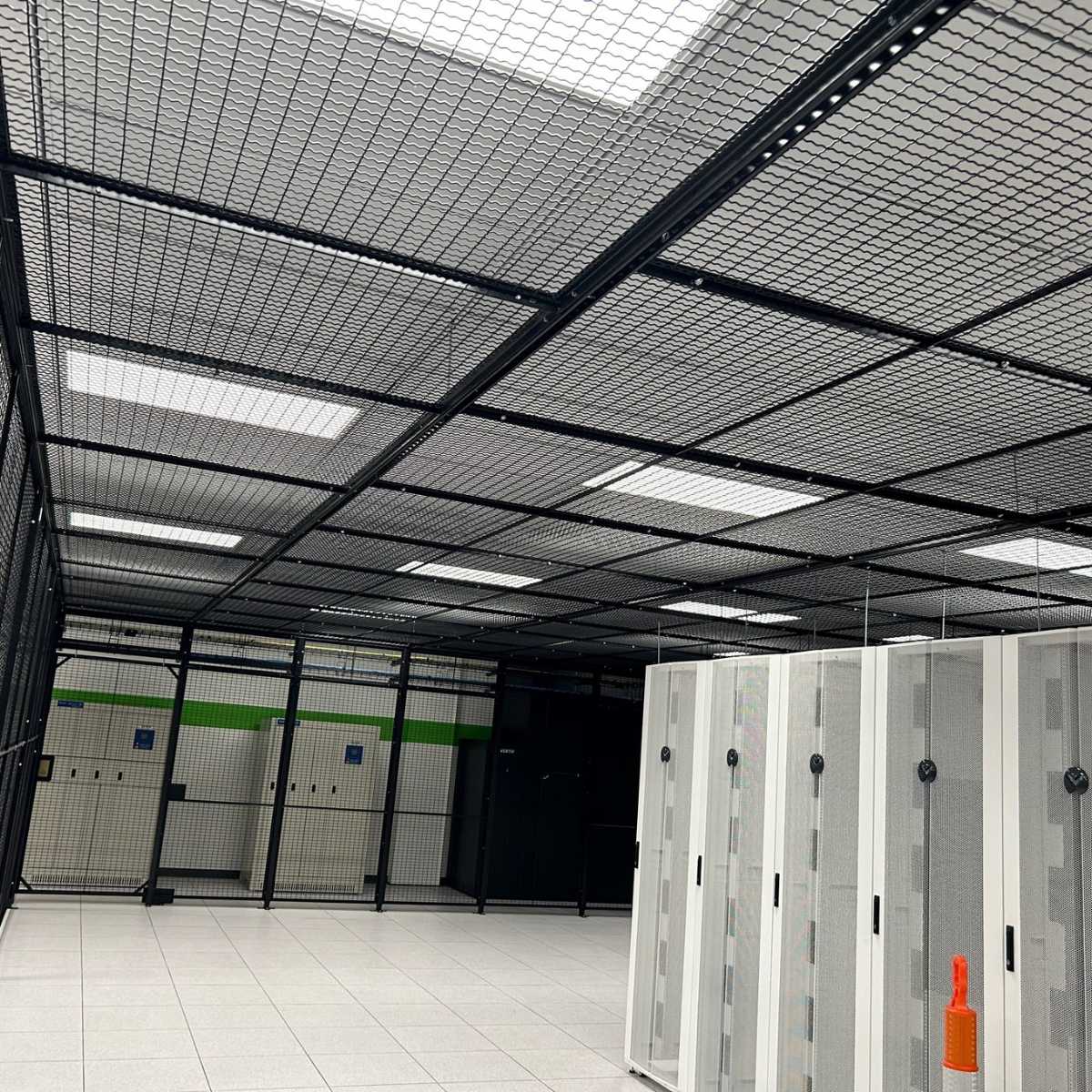

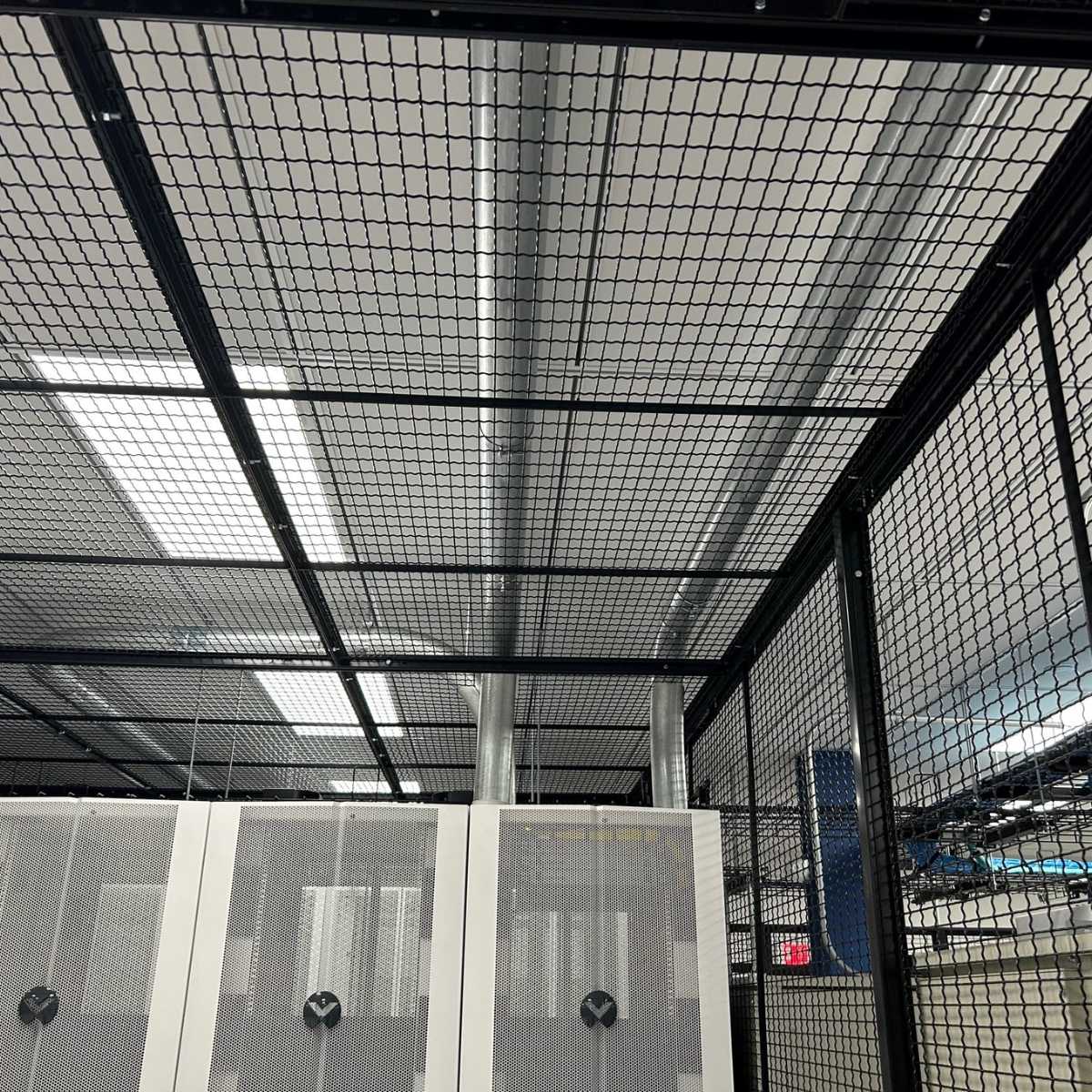

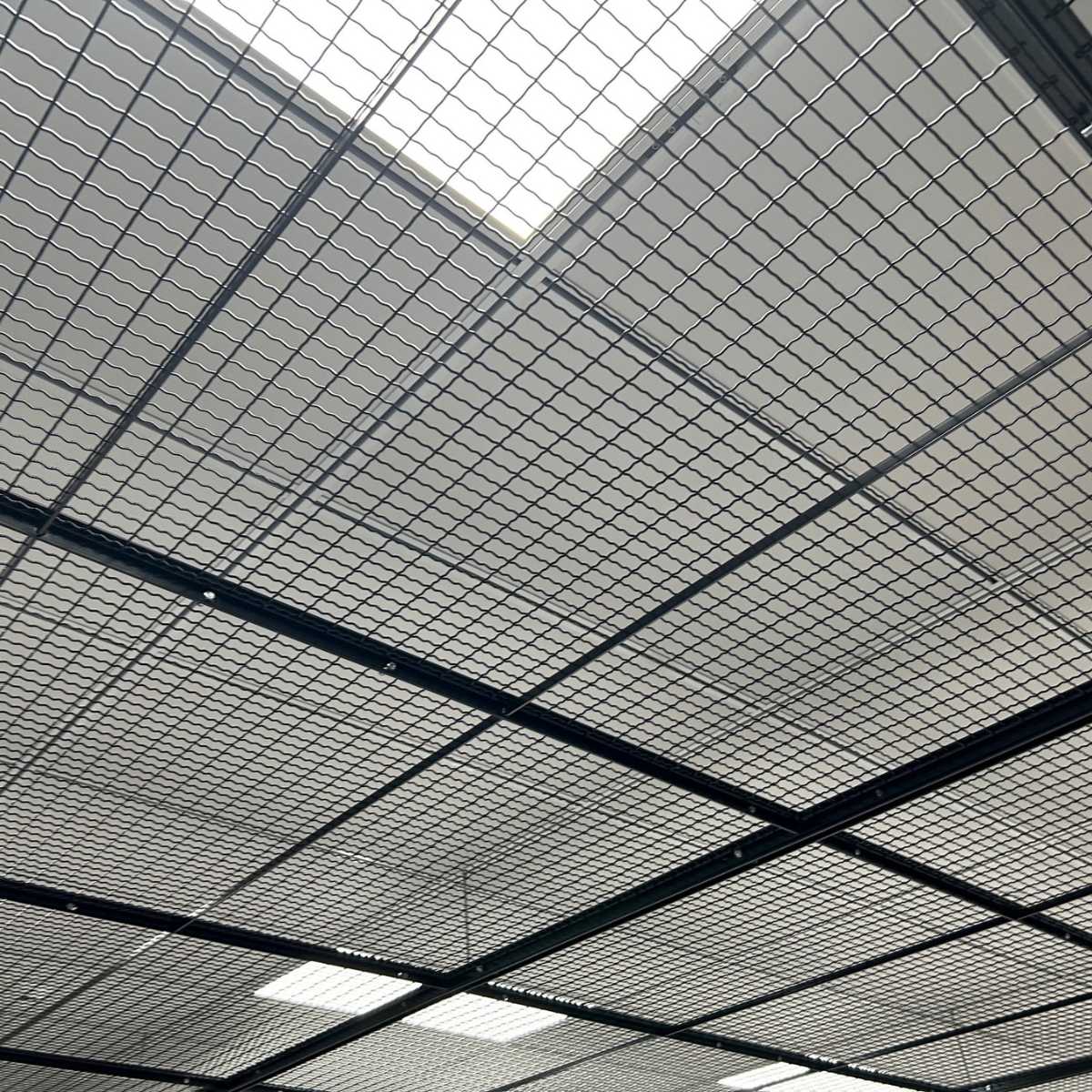

The wire mesh panels then bolt directly to a 2″ square, 14 gauge steel tube post with 3/8″ hardware – which allows for the strongest server cages in the industry. The posts have a welded base plate, and we provide floor anchors to ensure a strong rigid wire partition system. WireCrafters Style 840 posts can be used in conjunction with an extra base plate which allows them to sandwich data center floors, creating a strong secure connection that will not damage the floor or be able to be removed without the proper tools. Ceilings are also available as an option to further increase the security of your server cage system.

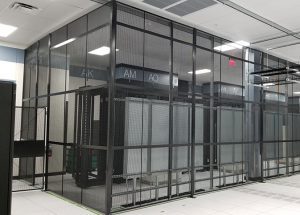

Beyond The Standard Server Cage

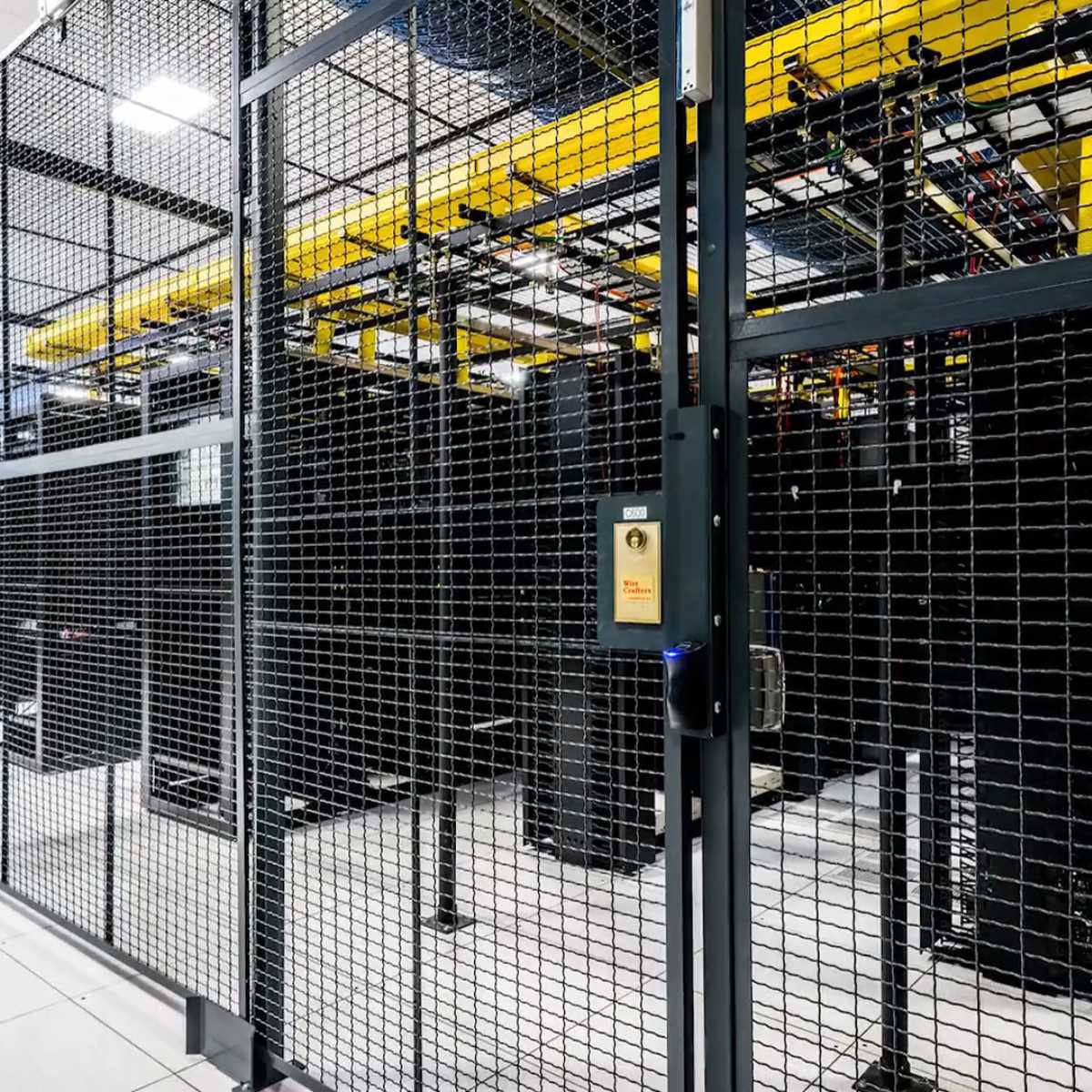

WireCrafters has a wide array of options for your Server Cage. Our standard hinged and sliding doors are available, however we also offer vertical rise doors, motorized sliding doors, and double-hinged doors. These doors can be equipped with a basic key lock, or for more security, we also offer self-closing doors, keypad locks, card readers, finger print scanners, and even emergency exit push bars to name a few. WireCrafters offers eight different powder coat colors in house, but can also match any color with a paint chip or RAL number.

Key Server Cage Features

  • Twenty standard sized panels 4’0″ or 5′-0″ high, by 1′-0″ to 10′-0″ wide.
  • Stack two or more panels between posts to reach wall height.
  • Standard size panels work in ceilings and walls.
  • Custom size panels and special heights available.
  • Hinged, double hinged, sliding and vertical rise doors available.
  • Sliding doors have patented tamper resistant latch mechanism.
  • Angle frame design gives installer clear access to hardware, speeding installation.
  • Assembly hardware is inaccessible from the secured side of the partition.
  • Standard 3/8″ mounting hardware is the heaviest in the industry.
  • Heavy duty options available.
  • Panels may be ordered with any mesh, expanded metal, sheet metal or clear polycarbonate.

Server Cage from WireCrafters


Product Brochure

Related Posts

Colocation Cages: Unleashing Security and Scalability for Data Centers

Safety, Separation, Server & Colocation Cages, Wire Partitions

WireCrafters, a leading provider of wire mesh cages, empowers businesses with enhanced security, flexibility, and peace of mind. Explore the benefits of colocation and non-colocation cages, and learn how WireCrafters' expertise can optimize your data center's security and efficiency. Unlock the potential of secure data storage and find out how WireCrafters can elevate your data center to new heights.

Read More

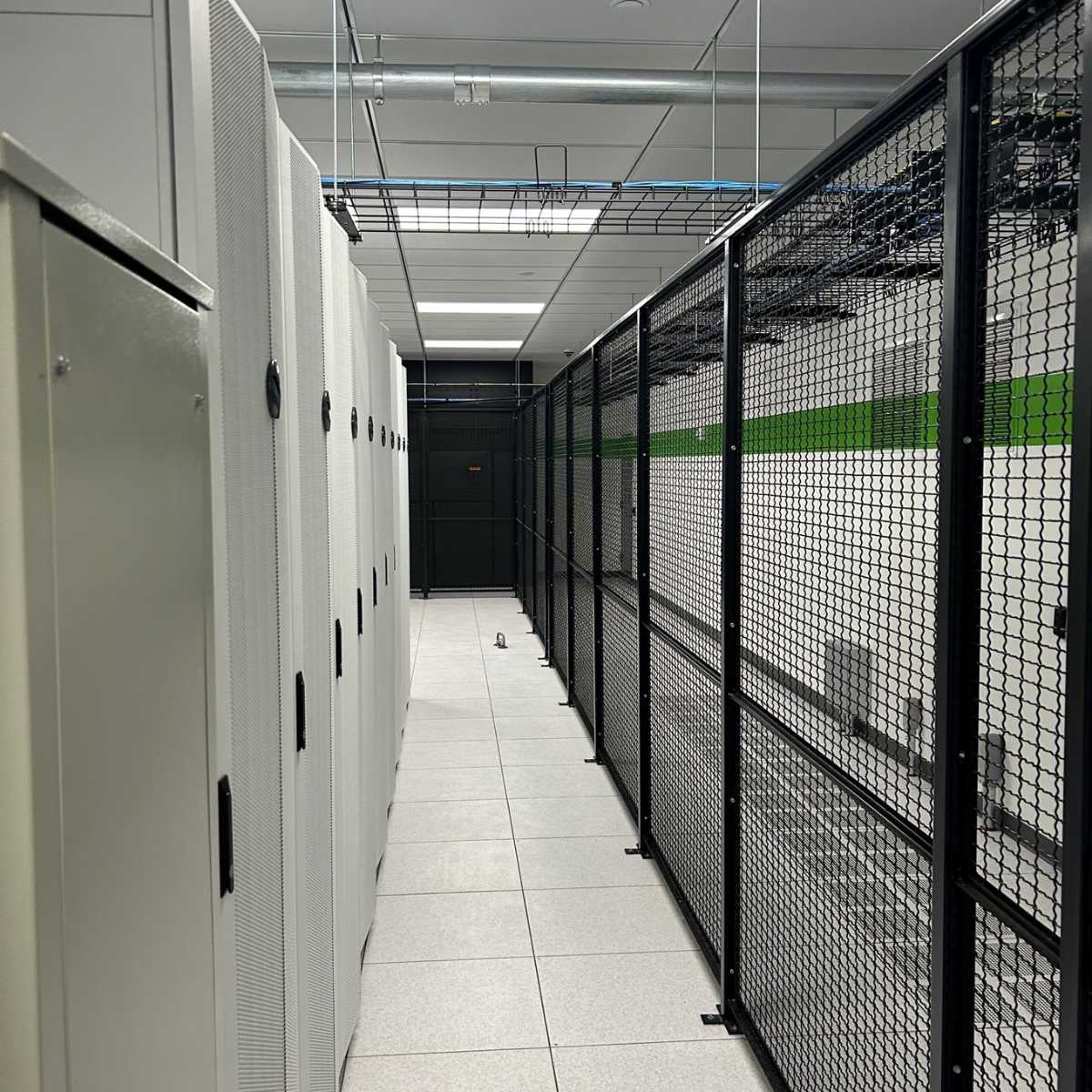

Industrial Shelving Systems Server Cage Case Study
