RackBack® Pallet Rack Backing Safety Panels
Pallet Rack Backing with Wire Mesh Panels
Protect workers and equipment from falling items with WireCrafters RackBack® pallet rack backing panels. RackBack® wire mesh panels bolt directly to the back of your existing pallet rack uprights creating a sturdy barrier between stored items and the ground below.
WireCrafters RackBack® meets the OSHA 1910.28 regulation stating that “This section requires employers to provide protection for each employee exposed to fall and falling object hazards. Unless stated otherwise, the employer must ensure that all fall protection and falling object protection required by this section meet the criteria in § 1910.29, except that personal fall protection systems required by this section meet the criteria of § 1910.140.” For more information visit the OSHA website.
PREVENT FALLING ITEMS
RackBack® pallet rack backing panels prevent spillage, while also stopping items from falling into aisle ways.
DUAL PROTECTION
Protect personnel while containing inventory.
48 HOUR QUICK SHIP
Stock panels are ready to ship within 48 hours of receiving your order.
Improve Warehouse Safety
Quick and easy to install, our RackBack® panels provide additional safety and secure stored items from accidental falling or shifting.
Constant Accident Prevention
Durable all welded angle frame wire mesh panels give constant protection from falling items. RackBack® pallet rack backing panels prevent spillage, while also stopping items from falling into aisle ways, therefore protecting personnel while containing inventory. WireCrafters rack protection is competitively priced with less effective pallet rack netting style backing and is easy to install.
See our page on Rack Enclosures for completely enclosing and securing your pallet rack system.
RackBack® Pallet Rack Backing Specs

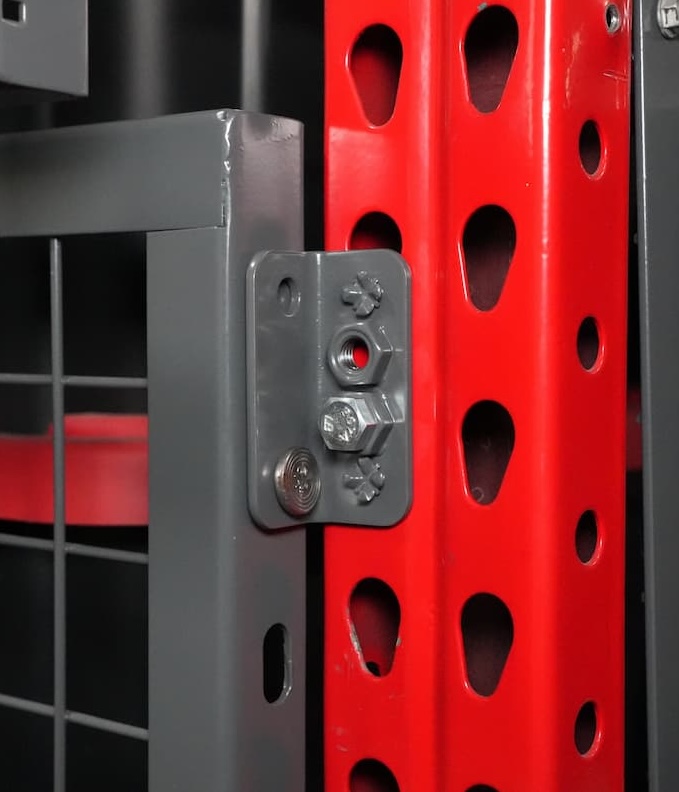

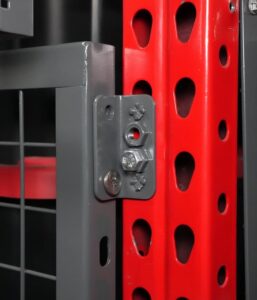

The RackBack® Pallet Rack Backing System is made of 2″ x 2″ x 10 gauge steel welded wire mesh, welded into a 1 1/4″ x 1 1/4″ x 13 gauge steel angle frame. Panels have predrilled mounting holes on six inch centers and are provided with flush mount or offset brackets to allow for pallets that overhang the beams.
Our “Above the Top” kit allows panels to extend above the rack to contain loads stored on top beam. Custom sizes for the RackBack® Pallet Rack Backing System are available.
Stock items are ready to ship within 48 hours of receiving your order.
Free design and layout assistance is available. Call 800-924-9473
Key RackBack® Features
- Standard sized panels 4′-0″ or 5′-0″ high, match beam length in width.
- Custom size panels available.
- Panels made of 2″ x 2″ x 10 gauge welded wire mesh.
- Flat steel stiffeners welded behind mesh for extra rigidity.
- Pallet Rack Backing Panels attach directly to rack with mounting brackets.
- Multiple attachment points (seven) on ends of each panel.

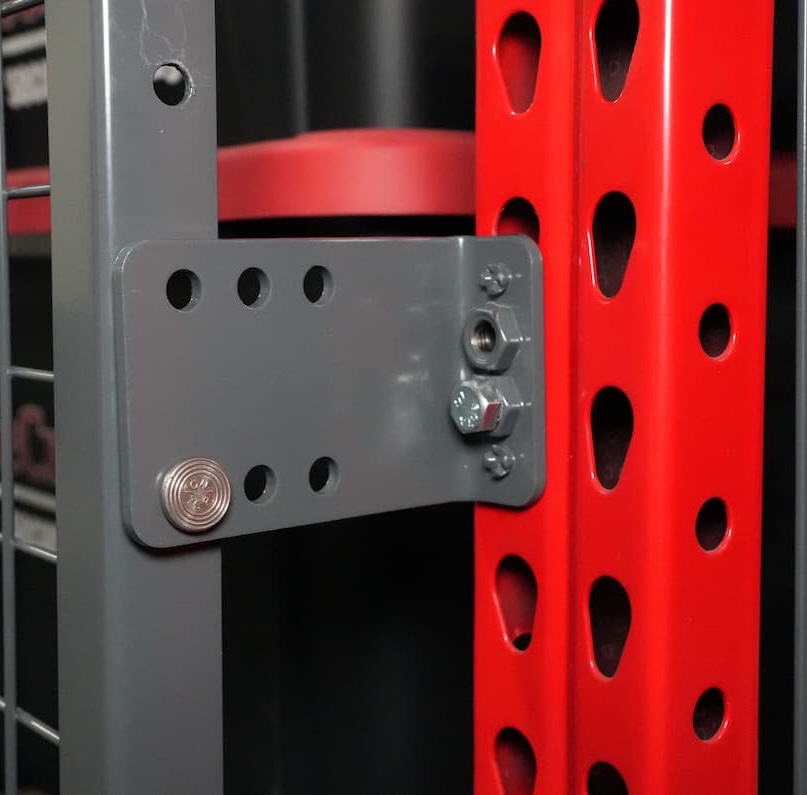

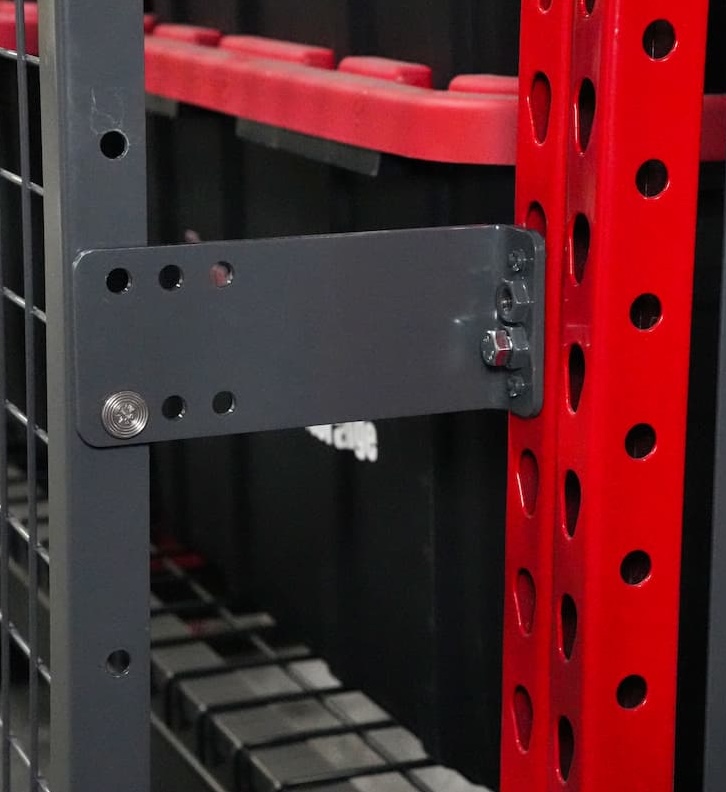

- Offset brackets allow for load to overhang rack beams.
- Stack RackBack® panels one on top of the other to reach desired height.
- “Above the Top” mounting allows panels to extend above top rack beam.
- Angle frame design gives installer clear access to hardware, speeding installation.
- Assembly hardware is inaccessible from the exterior of the partition.
- Standard 3/8″ assembly hardware is the heaviest in the industry.
- RackBack® Pallet Rack Backing System may be started at the floor or at any level where protection is required.
- Pallet rack backing panels can be mounted to support posts-if stand alone system desired.
- Heavier options available.
