Garage Storage

WireCrafters Garage Storage Locker

Garage Storage Solutions

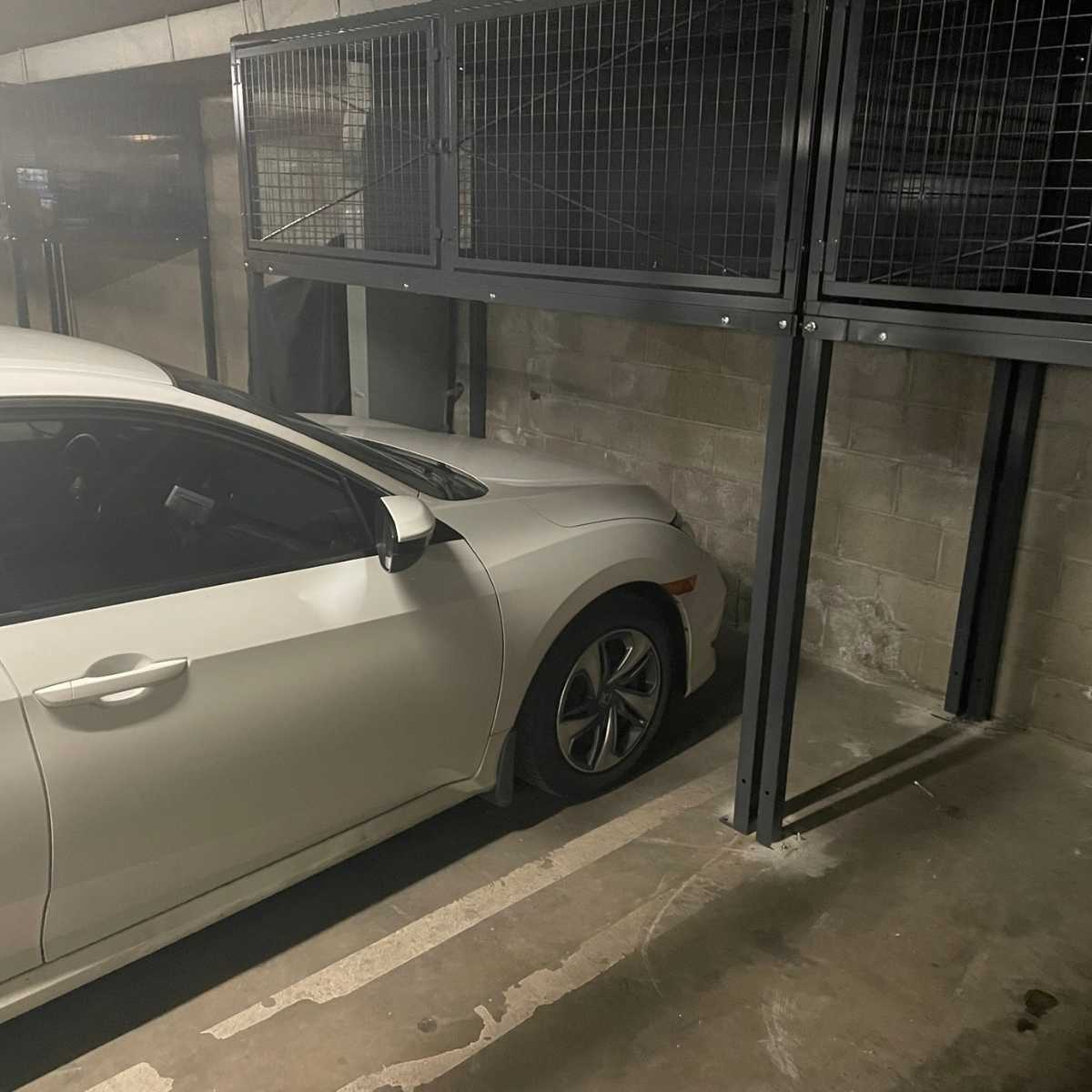

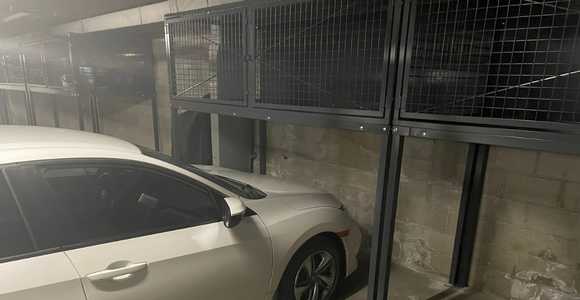

When storage space is at a premium, consider transforming unused garage space into convenient storage areas. WireCrafters wall mounted garage storage lockers turn the unused open space above parked cars into useful storage units.

Valuable & Convienent Storage Space

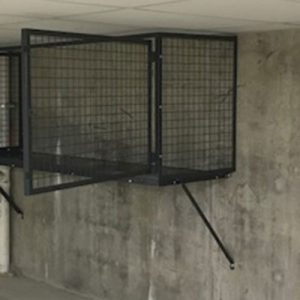

The wall mounting feature of WireCrafters garage lockers allows ample room for even the largest vehicle to park, while maximizing storage potential. Garage storage lockers are a benefit to any condominium or apartment building. Additional revenue can be attained by either renting or selling these lockers to building tenants. A common complaint among residents in large cities is a lack of storage options for seldom used items. There is only so much closet space inside an apartment or condominium. When living space is so valuable, WireCrafters garage storage lockers are ideal for storing seasonal and bulky items that are not used regularly.


Sturdy Construction & Many Available Options

Made of tough 2" square 10 gauge welded wire mesh framed with 1 1/4" x 1 1/4" x 13 gauge steel angle, these garage storage lockers are the strongest in the industry. Our standard size garage storage locker is 8' wide x 3' deep x 3' high, but custom sizes are also available. Garage lockers also have wire mesh ceiling panels for added security. If the storage locker is being installed close to the existing building's ceiling, you can eliminate the locker ceiling panel to save costs.

We provide lockable hinged or sliding doors to allow full access to the entire front of the storage locker, and the doors are equipped with a padlock lug so the tenant can put their own padlock on. The base or bottom panel of the storage locker is made of solid 16 gauge galvanized sheet metal.

Simple & Stress Free Installation

WireCrafters has simplified the installation process for our garage storage lockers. Standard hand tools are all that are required to bolt the locker together. If you select a hinge door, the hinges will already be welded on the door frame. We provide a CAD drawing with a complete layout of your garage area showing where each locker is located. All materials are listed on the drawing with a part number, and every locker part will have a tag on it to ensure a stress free installation.

The storage lockers open but secure design allows existing lighting, ventilation, and fire suppression systems to function effectively throughout the secured storage areas. Because of the wire mesh design, building managers can view the items being stored ensuring that tenants do not have potentially dangerous materials inside.

WireCrafters provides a powder coat gray paint to the locker to ensure a strong durable finish which will last for years. We do offer a variety of colors at an additional charge.

  • Made of tough 2" x 2" welded mesh.
  • Other meshes available as options.
  • Framed in 1 1/4" x 1 1/4" x 13 gauge steel angle.
  • Bottoms made of 16 gauge galvanized sheet metal.
  • Pad lockable hinged or sliding doors.
  • Pad lock lugs standard.
  • Ceilings are typical. Option without ceilings is also available.
  • Standard size: 8' wide, 3' deep, 3' high.
  • Door Panels

    Access doors shall be wire mesh framed in 1 1/4" x 1 1/4" x 13 gauge roll formed angle. Hinged doors shall have two 2 1/2" x 2 1/2" spun hinges securely welded to frame. All doors supplied with padlock lugs welded in place.

  • Wall Panels

    Shall be framed on three sides with 1 1/4" x 1 1/4" x 13 gauge roll formed steel angle, double border wire completes the frame.

  • Wire Mesh

    Shall be made of 10 gauge carbon steel wire welded in a 2" x 2" (center to center) pattern.

  • Bottoms

    Shall be formed16 gauge galvanized sheet metal fastened to a 1 1/4" x 1 1/4" x 1/8" angle support.

  • Support Brackets

    Shall be made of 1 1/4" x 1 1/4" x 1/8" steel angle.

  • Hardware

    Shall be 3/8" standard thread grade two plated nuts and bolts; 3/8" mechanical anchors for wall mount provided.

  • Finish

    All non-plated parts are Powder Coat Gray. View other available Color Options

WireCrafters logo ×Close
Finishes & Colors

Unless otherwise specified by the customer or by the stock finish description on our website, all WireCrafters products receive one coat of gray (standard) liquid enamel.

Stock Colors

WireCrafters maintains stock of the optional colors shown. All colors are available in traditional liquid enamel or an optional powder coat finish. Touch up paint is provided with all orders (other than custom powder coat colors).


Custom Colors

Custom matched colors require the submission of a one inch square (or larger) paint chip with order, and require an additional charge. (RAL standard color number may be submitted in lieu of paint chip.) Touch up paint is provided with all orders. Custom match colors may extend delivery time. Please contact WireCrafters customer service for additional information.


Optional Finishes
  • Powder Coat
  • Galvanized
  • Plain Steel
  • Brushed (Stainless Steel)
  • Electro Polished (Stainless Steel)

WireCrafters Product Finishes and Color Samples

*Note: The colors displayed on this website show the variety of optional colors kept in stock. Users should not place orders based on the colors as reproduced on their computer screens as these may vary from the actual color. Please request a printed WireCrafters Color Chart before making a color selection.
